Product Description
Overview
The Syntel Neo-DX EPABX Series is a modern analog PBX solution designed to simplify business communication while improving productivity. Built with over 50 essential telephony features, Neo-DX offers easy installation, low maintenance, and flexible configuration options. It is TEC certified, EMI-EMC certified, safety certified, and manufactured in India, making it suitable for both private enterprises and government deployments.
Key Benefits
- Reliable day-to-day communication with rich calling features
- Quick installation and hassle-free maintenance
- Flexible extension and junction configurations
- Improved call handling and productivity
- Available on GeM for government procurement
Core Features
- Abbreviated dialling (system and personal)
- Auto call back on extension and CO
- Barge-in with or without tone and barge-in protection
- Call consult, call transfer, call forward and call follow me
- Call park and call pick-up (selective or group)
- 3-party conference calling
- Day and night mode with automatic or manual selection
- Direct inward dialling
- Dynamic STD locking and class of service control
- Hunting patterns and hotline feature
- Last number redial and status display for CO lines
- Password-protected extensions and system programming
Additional Capabilities
- FSK and DTMF caller line identification
- Voice guidance support (optional card)
- Flexible numbering plan
- Real-time clock with LED indication
- Programmable flash and pause timings
- Mute button option
- Hook switch delay time programmable
Available Models & Capacity
| Model | Extensions | Junctions | Power Consumption |
|---|---|---|---|

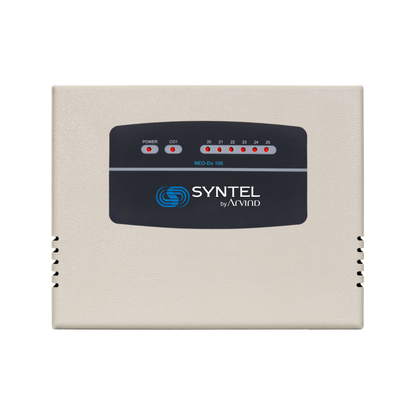

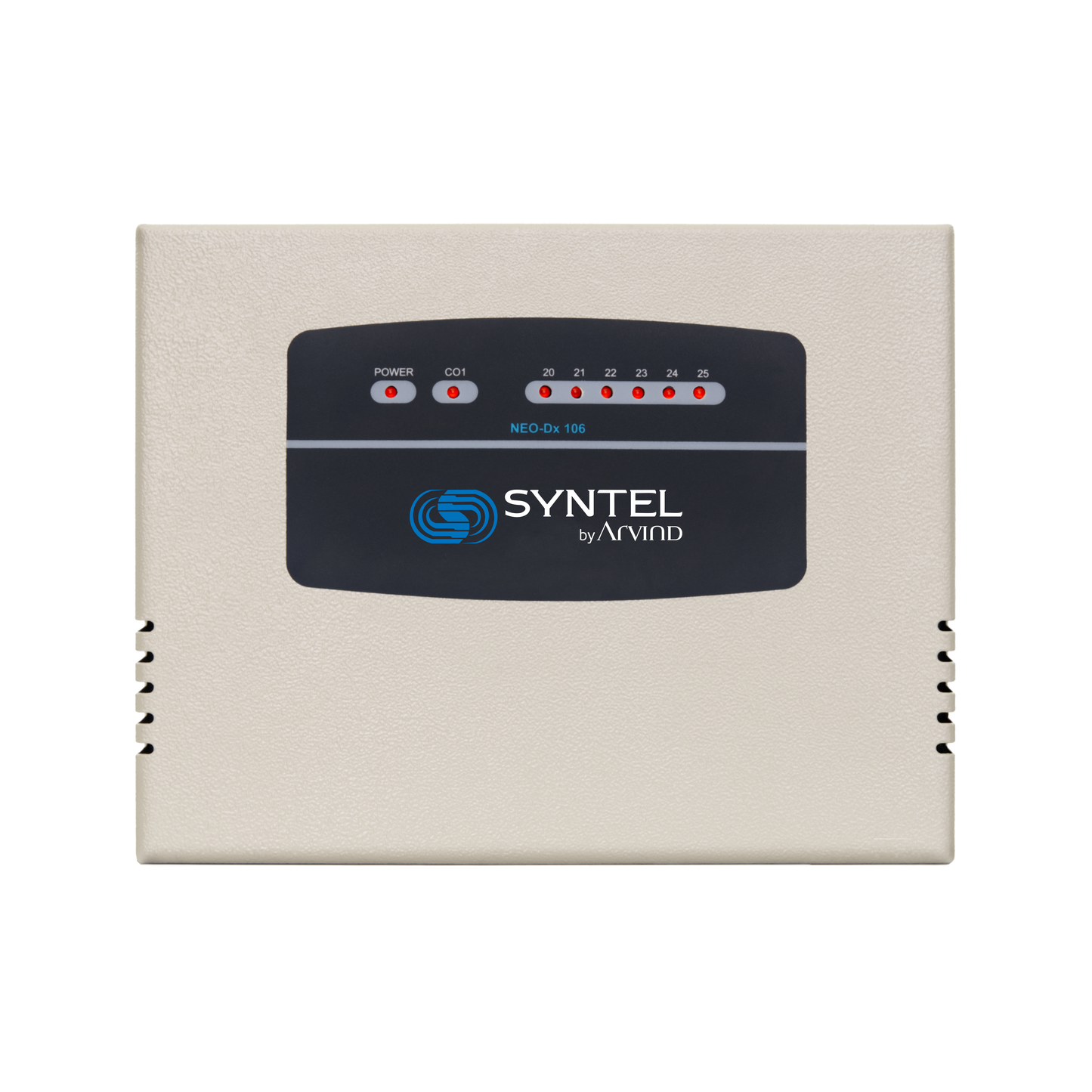

| Neo-DX 106 | 6 | 1 | 20 W |
| Neo-DX 206 | 6 | 2 | 20 W |
| Neo-DX 208 | 8 | 2 | 20 W |
| Neo-DX 308 | 8 | 3 | 20 W |

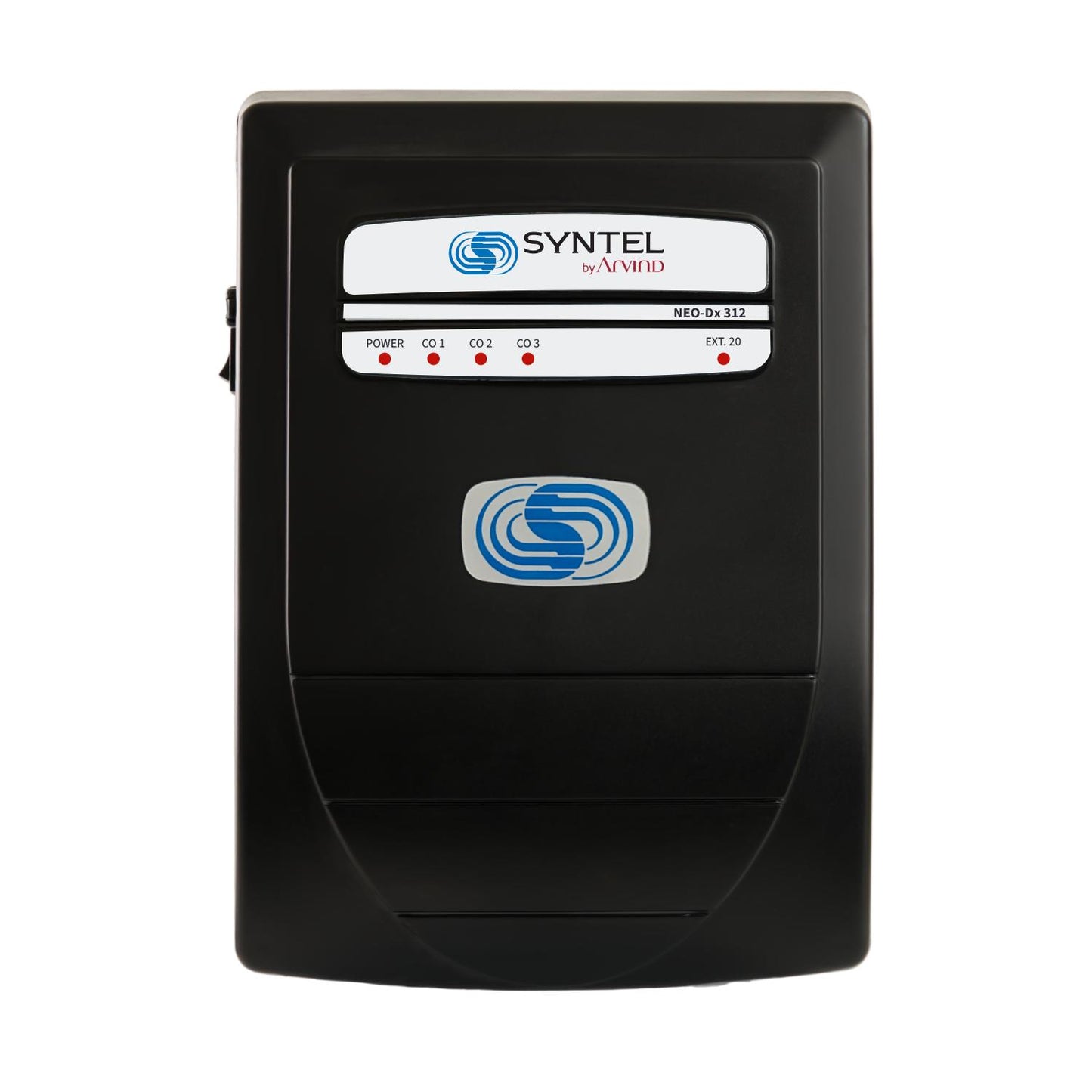

| Neo-DX 312 | 12 | 3 | 25 W |

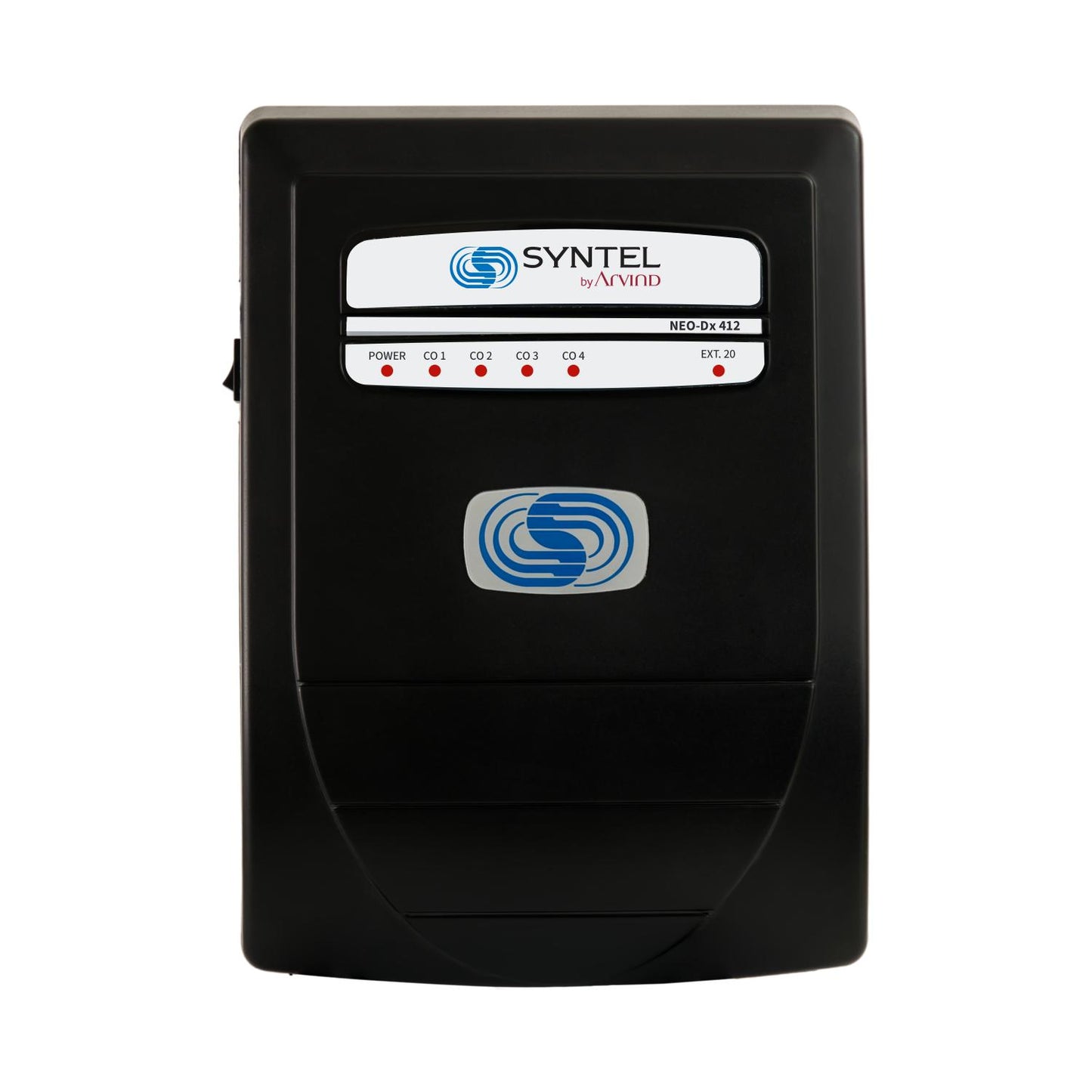

| Neo-DX 412 | 12 | 4 | 25 W |
Physical & Electrical Details
- Input operating voltage: 180 Vac to 250 Vac, 50 Hz
- Compact wall-mountable cabinet
- Designed for continuous business operation
Certifications
- TEC certified
- EMI-EMC certified
- Safety certified
- Made in India
Ideal For
- Small and medium offices
- Factories and warehouses
- Hotels and guest houses
- Hospitals, clinics, and institutions
- Government and PSU installations
Specifications are based on the official Syntel by Arvind Neo-DX brochure.
