Product Description
Overview

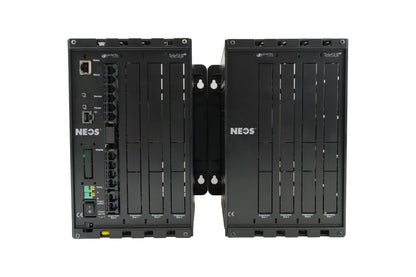

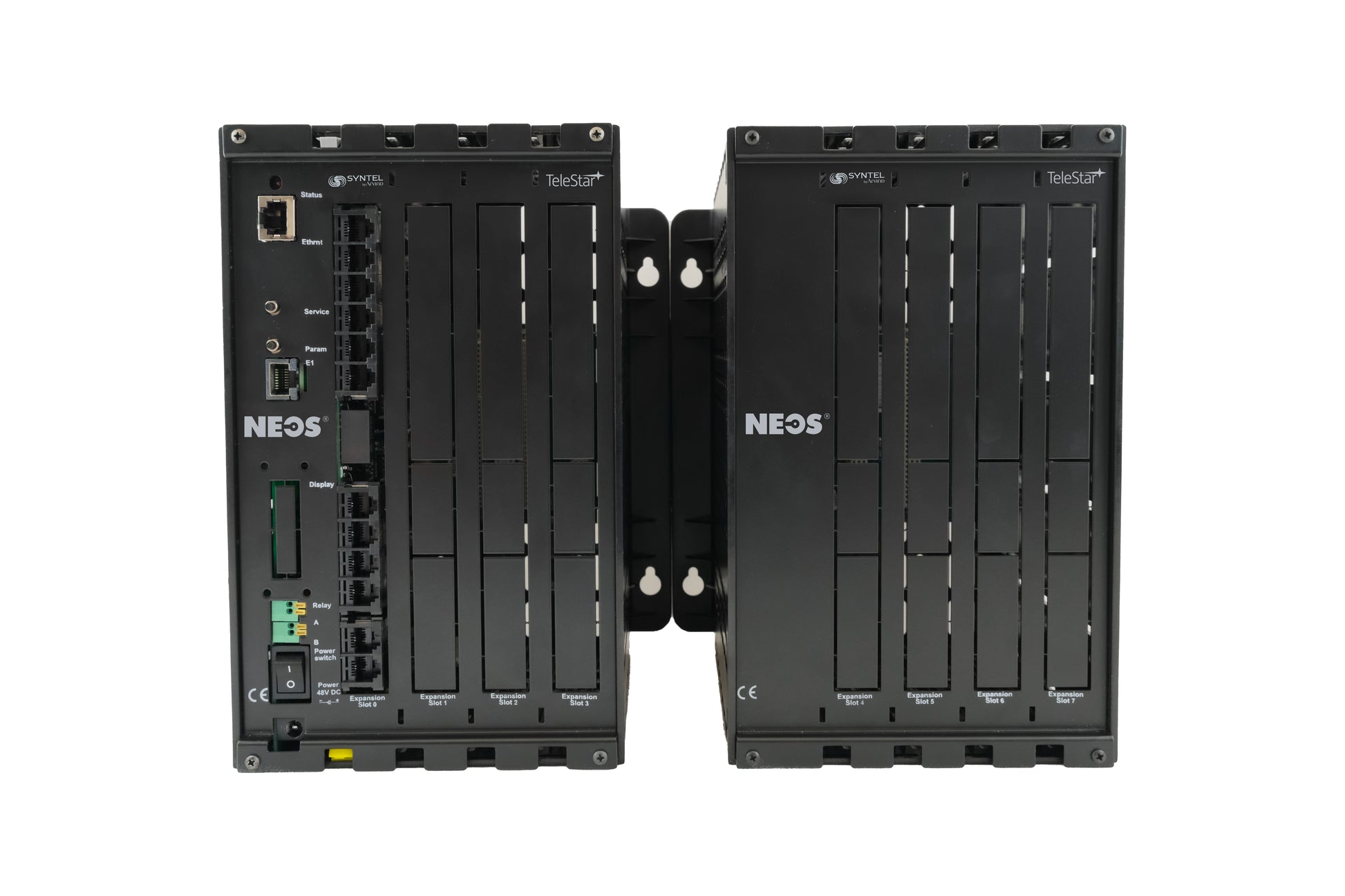

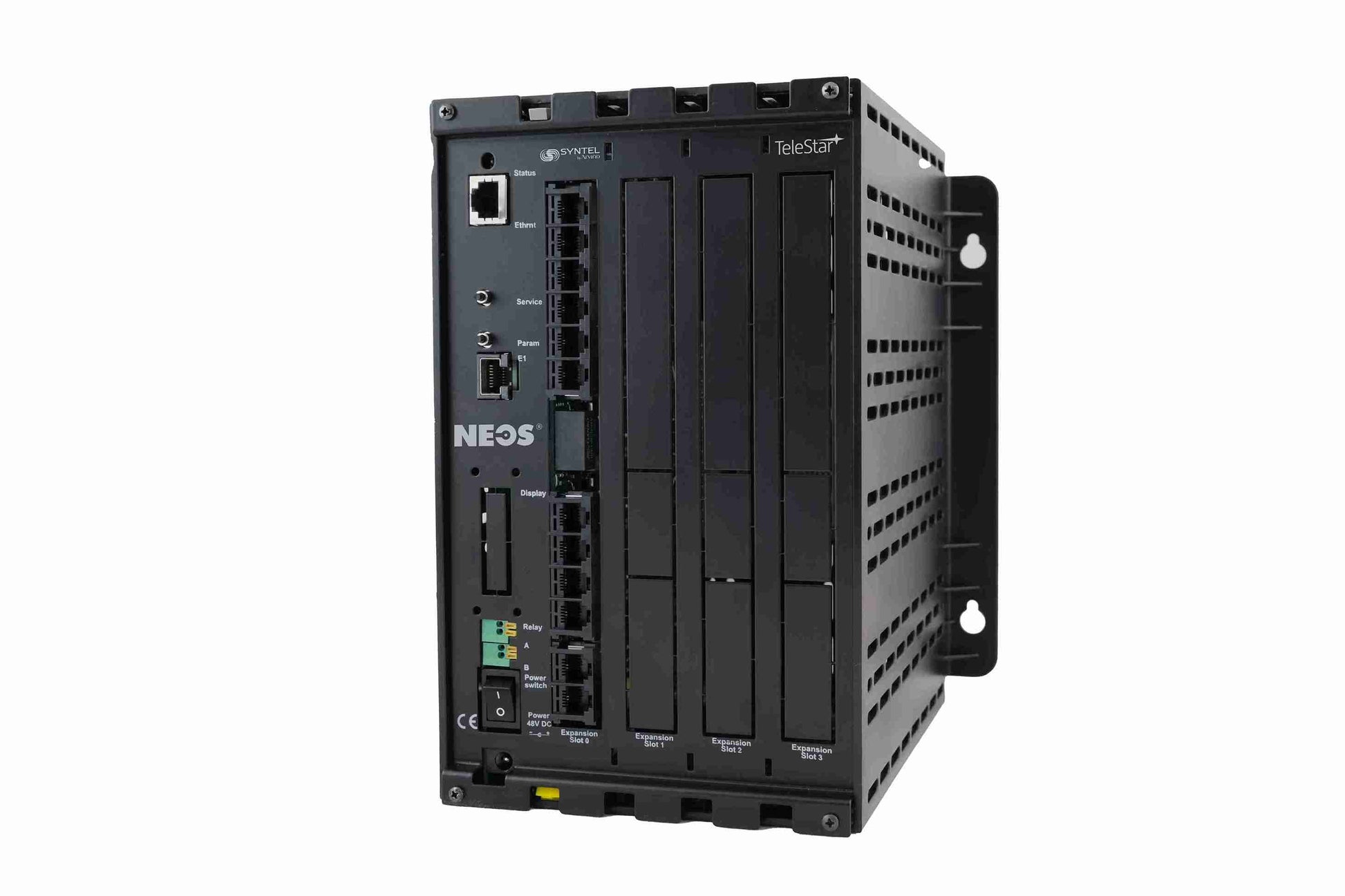

The Syntel NEOS TeleStar is a next-generation intelligent IP PBX system designed to set a new benchmark in unified communications. Built with a robust and scalable architecture, TeleStar seamlessly integrates traditional telephony with VoIP, enabling organizations to enhance productivity, reduce communication costs, and simplify system management.
With a unique web-based programming interface, NEOS TeleStar allows administrators to configure, monitor, and manage the entire system remotely with ease. The system supports centralized management across multiple locations, making it an ideal choice for enterprises with distributed offices.
Why Choose NEOS TeleStar
- Unified IP PBX for traditional and VoIP telephony
- Scalable from 16 ports up to 670 ports (IP + TDM)
- Web-based programming and remote management
- Centralized control for multi-location deployments
- Enterprise-grade security and encryption
System Capacity & Scalability
- Expandable from 16 ports to 670 ports (IP + TDM)
- 112 hybrid SIP ports expandable up to 528 ports
- Up to 127 NEOS TeleStar systems can be networked over IP
- Cluster architecture for load sharing and high availability
- Automatic synchronization of configuration and call data across cluster
Built-In Communication Resources
- In-skin 64-channel DSP resources
- In-skin IVR (Auto Attendant)
- In-skin Voice Mail
- In-skin Conferencing (up to 32-party)
- In-skin Voice Logger
- Storage capacity up to 12,000 minutes
Security & Network Readiness
- TLS and SRTP support
- AES-256 bit encryption
- IPv6 ready
- Secure IP communication across clustered systems
Interfaces & Protocol Support
- Ethernet interface
- IP Protocols: H.323 (for lines), SIP (for lines and extensions)
- Analog extension interface with Caller ID (DP/DTMF)
- Analog line interface with Caller ID (DP/DTMF)
- PRI ISDN interface (DSS1 – ETSI EN300403)
- CRL (Call Record Listing) via PC interface (LAN or PC)
Interface Cards Supported
- Analog Extension Cards: 0/8AE or 0/16AE
- Digital Extension Cards: 0/8DE or 0/15DE
- Analog Trunk Cards: 4CO/0 or 8CO/0
- Hybrid Cards: 4CO/8AE or 4CO/6AE + 2DE
- PrX Card adding 208 SIP ports (maximum 2 cards)
- E1 Module: 1E1/0 (mounted on CPU card, does not occupy slot)
Processor & Reliability
- Stored Program Control (SPC)
- Distributed processor architecture
- High system reliability for mission-critical communication
Physical Specifications
- Dimensions (per rack): 148 mm (W) × 241 mm (H) × 201 mm (D)
- Width with brackets: 192 mm
- Humidity range: 0% – 85% (non-condensing)
Certifications
- TEC Certified
- EMI-EMC Certified
- ISO Certified Company
- Manufactured in India
Ideal For
- Medium and large enterprises
- Multi-location corporate offices
- Government and PSU deployments
- Organizations requiring centralized IP PBX management
- Businesses migrating from legacy PBX to IP-based communication
Specifications are based on the official Syntel by Arvind NEOS TeleStar brochure.
