Product Description
Overview

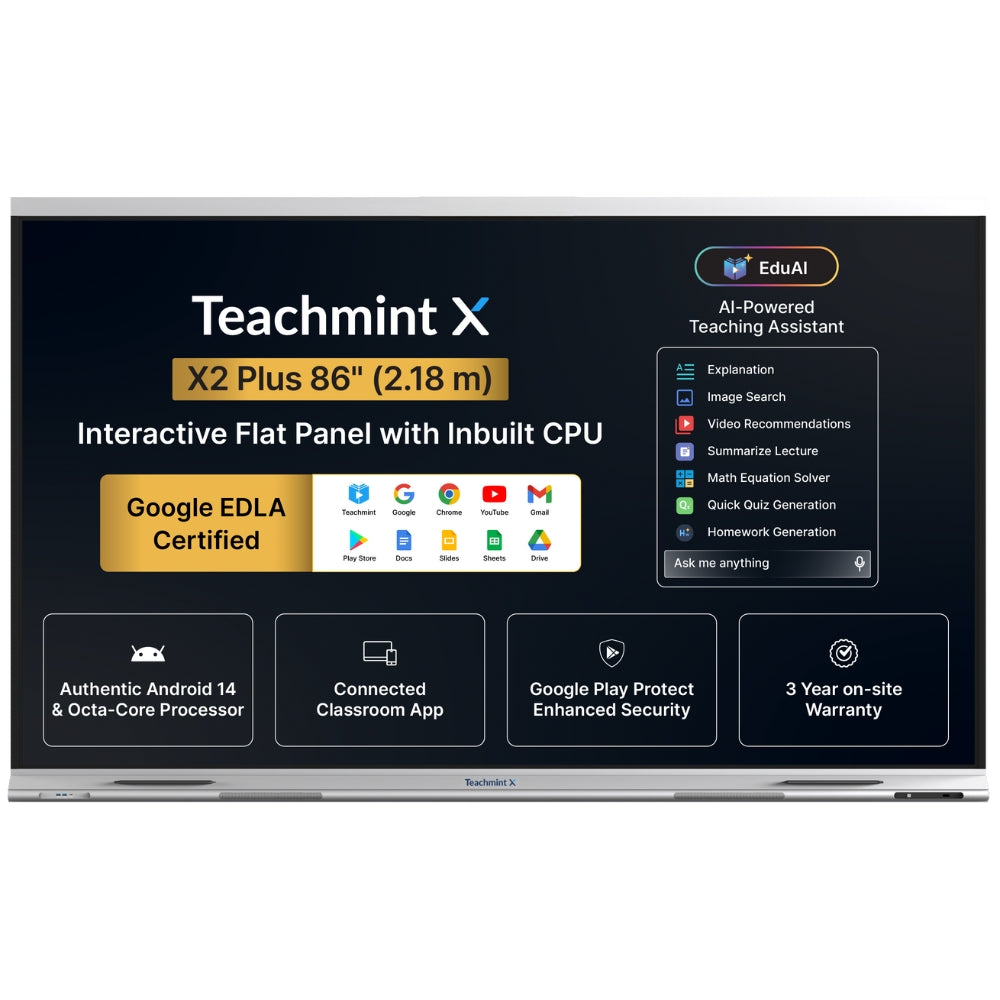

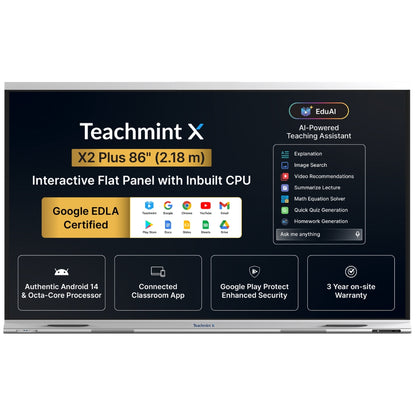

The Teachmint X 86 Plus delivers everyday excellence with elevated performance for large classrooms, lecture halls, and auditoriums. Featuring an expansive 86 inch 4K UHD display, zero-lag infrared touch, Android 14 with Google EDLA certification, and built-in EduAI tools, it enables smooth, secure, and engaging teaching at scale.
Key highlights
- 86 inch ultra-clear 4K UHD display with 1.07 billion colors
- Zero-lag infrared touch with up to 40 touch points and ≤5 ms response time
- Android 14 with Google EDLA certification
- EduAI personal teaching assistant for intelligent lesson creation
- NFC-based secure teacher login with instant access
- 3.2 mm toughened glass with 9H hardness for long-term durability
- Front-facing audio system with 2 × 20 W speakers
- Multiple connectivity ports including HDMI, USB-C, LAN, and audio
Smart classroom capabilities
- Advanced whiteboard software with pens, palm erase, smart shapes, and text tools
- Create whiteboards, presentations, and PDFs using EduAI
- AI-powered quick quiz creator with detailed explanations
- Class lecture recording, publishing, and automatic summarization
- Attendance management for in-class and remote students
- Live classes with chat, polling, and screen sharing
- Online collaboration with access control options
- Lesson sharing via QR code, WhatsApp, or email
- NCERT-aligned content with STEM learning tools
- Offline mode for uninterrupted teaching
Technical specifications
| Screen size | 86 inch (2.17 m), 16:9 |
| Resolution | 3840 × 2160 (4K UHD) |
| Brightness | 450 nits |
| Contrast ratio | 1200:1 (typical) |
| Touch technology | Infrared touch, up to 40 points |
| Processor | Octa Core RK3576 (4 × ARM Cortex A72 @ 2.2 GHz + 4 × ARM Cortex A53 @ 2 GHz) |
| Memory | 8 GB RAM, 128 GB ROM |
| Operating system | Android 14, Google EDLA certified |
| Audio output | 2 × 20 W front-facing speakers |
Connectivity
- HDMI, USB 3.0, USB 2.0, USB-C, Touch-USB
- LAN, Mic In, Audio Out
- Dual-band Wi-Fi (2.4 GHz and 5 GHz, 802.11 a/b/g/n/ac)
- Bluetooth 5.0
Package contents
- Teachmint X 86 Plus interactive flat panel
- Wall mount kit
- Remote control
- Touch pens
- NFC cards
- Power cable, HDMI cable, USB A-B cable
Warranty and support
Pan-India delivery and service support with 3-year on-site warranty and uninterrupted 365-day customer support.
Source: Teachmint X 86 Plus specification brochure.
